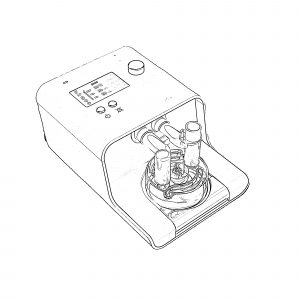

High Flow Nasal Cannula (HFNC) Oxygen Therapy Device, Non Invasive Ventilator, high flow rates with heated humidification, for adult and pediatric mode, AC powered, with accessories
Non Invasive Ventilator, high flow rates with heated humidification, for adult and paediatric mode, AC powered, with accessories
Oxygen concentrators are not suitable to be used as an oxygen source to other medical equipment providing respiratory support, such as ventilators, CPAP devices, High Flow Nasal Cannula, etc.
The technical specifications listed below are the minimal requirement that the HFNC devices can perform and fulfill according to the WHO requirements. The detailed technical specifications and packing contents can be slightly different across models. The specific product model and information will be sent for your approval prior to next steps.
The humidity compensation system
The temperature the mixed gas of air and oxygen is warmed up to 37°C
FiO2: 21 to 100 %.
Flow up to 60L/min
Alarms, related to gas delivered; Visual and audible for: High/Low FiO2 and System leakage or blockage
Alarms, related to equipment operation: Visual, audible and clearly indicating the problem for: Lack of water; System failure; Power failure
Operating Voltage: 100-240 V ~, 50/60 Hz
Equipment must be connected to a continuous source of power. Note that power plugs may vary across countries
ISO 13485
Directive 93/42/EEC
HFNC Main Unit – 1 piece
Oxygen cannula – 1 piece
Water Chamber – 1 piece
Heated breathing circuit – 1 piece
High pressure oxygen tube – 1 piece
Flow meter – 1 piece
User Manual – 1 piece
Power cord – 1 piece
Quality certificate – 1 piece
The User Manual supplied with the device details all installation which can be undertaken by users.
The User Manual supplied with the device details all operation procedures for user.
The User Manual supplied with the device details all maintenance and troubleshooting procedures which can be undertaken by users.
Note: Contact Iplussolutions if additional installation and training requirements are required beyond user manual
2 years
