A mains electricity powered device that concentrates oxygen from ambient air and delivers the concentrated oxygen in a controlled manner to a patient requiring oxygen therapy, up to 10 L/min.
General description

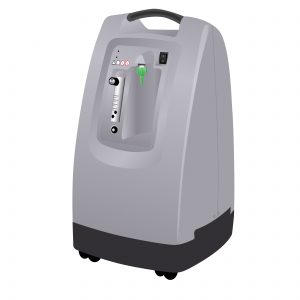

Oxygen concentrator, 10 LPM – double flow
Important Information
Oxygen concentrators are not suitable for use as an oxygen source for other medical equipment providing respiratory support, such as ventilators, CPAP devices, High Flow Nasal cannula, etc.
The technical specifications listed below are the minimum requirements that concentrators can perform and fulfill according to WHO requirements. The detailed technical specifications and contents for each concentrator model may be slightly different. Therefore, information relating to the specific product model i.e. product brochure, package insert, etc. to be supplied will be sent to the Principal Recipient for acceptance and approval prior to ordering
Technical Specifications
Provides a continuous, variable flow of concentrated oxygen (>82%) derived from room air, to a maximum rate of 10 L/min.
Contains oxygen monitor to verify concentration.
Equipped with two oxygen outlets, provided with controllable flowmeter.
Audible and visual alarms for low oxygen concentration (<82%) and power supply failure.
Audible and visual alarms for high temperature, no flow rate and low/high pressure.
Flowmeter continuously adjustable, with markings of at most 0.5 L/min intervals.
AC 100-120V 60Hz, 220-240V 50Hz
Quality Standards
ISO 13485
DIRECTIVE 93/42/EEC
Item minimally supplied with
Oxygen Concentrator 10L – 1 piece
Oxygen cannula – 2 pieces
Humidifier Bottle – 1 piece
Air-intake filter-gross filter – 1 piece
Secondary filter-inlet filter – 1 piece
User Manual – 1 piece
Power cord – 1 piece
Quality certificate – 1 piece
Recommended Storage conditions
Temperature: 0 °C to 40 °C,
Relative humidity: 15% to 85%
Elevation above sea level: 0 to 2000m
Recommended Operating conditions
Temperature: 10 °C to 40 °C,
Relative humidity: 15% to 85%
Elevation above sea level: 0 to 2000m
Installation requirements
The User Manual supplied with the device details all installation which can be undertaken by users.
User training requirements
The User Manual supplied with the device details all operation procedures for user.
Technical training requirements
The User Manual supplied with the device details all maintenance and troubleshooting procedures which can be undertaken by users.
Note: Contact Iplussolutions if additional installation and training requirements are required beyond user manual
Warranty Period
2 years
