Surgical Cricothyroidotomy Set

Surgical Cricothyrotomy Set

Cricothyrotomy Set, Sterile, Emergency classical surgical technique

General description

Surgical Cricothyrotomy set is used for securing the airways in the event of obstruction of the upper airways or as ultima ratio if all other attempts to ventilate the patient have failed.

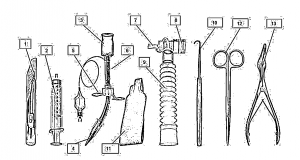

Components:

  1. Scalpel
  2. Syringe 10ml
  3. Dilator knob
  4. Dilator tip
  5. Flange
  6. Tube
  7. Suction cap
  8. Connector
  9. Extension tube
  10. Tracheal hook
  11. Neck tape
  12. Scissors
  13. Speculum

Technical Specifications

  • Connection: 15mm A.D.(direct connection); 15mm I.D. (connection via extension tube)
  • Tube I.D.: 6.4 mm
  • Tube O.D: 9 mm
  • Sterile, Single Use

Quality Standards

ISO 13485

DIRECTIVE 93/42/EEC

Shelf life

60 months

Storage and transportation

• Protect from heat and store in a dry place.

• Keep away from sunlight and light sources.

• Store and transport in the original packaging.

Packaging and labeling

Primary packaging: Unit of use

Instructions for use

I+solutions will send the detailed use instruction and product data sheet before processing the order.

Safety information:

  • Read and follow the instructions for use carefully before using the product.
  • The product must only be used by a physician with adequate skills in the use of the product.
  • Before use, the products must be inspected for damages (cracks, breakage, etc.), according to chapter “Functional check”.
  • The product serves to temporarily secure the airway. If possible it must be replaced by a permanent airway. Maximum recommended period of application: 4 hours.
  • Avoid damage to the cuff of the tracheal tube by sharp-edged objects.
  • Tracheal tube and extension tubing are suitable for conducting oxygen and air.
  • Only tracheal tube, syringe, extension tubing and neck tape do not contain any ferromagnetic materials.
  • The product is for single use and must not be reprocessed. Reprocessing influences the function of the product. Any reuse involves the potential risk for cross contamination.
  • The product is sterile (ethylene oxide). The product must not be used if the packaging is damaged or the shelf life has elapsed.
